Power-Heat-Set. Pioneering technologies for yarn treatment.
OUR SOLUTIONS AT A GLANCE.
Your requirements are our mission. Our focus is to bring advantages to your production process regarding quality, runability, productivity, usabilty, energy saving and handling. Our machines and components perfectly fit together and form a strong symbiosis for a smooth production flow.
ADVANTAGES OF PHS MACHINES
-
Proven reliability, flexibility and productivity through innovative technologies
-
High-quality yarn through efficient & effective processing
-
Low energy consumption
-
Easy maintenance
-
Intuitive and user-friendly operation, no specialized service engineers are required
-
Flexible configuration (different sizes, volumes, yarn types)
-
Cost-efficient spare parts and retrofits
-
R&D under one roof bringing together a wide range of expertise and experience leading to innovative hands-on solutions
HEATSETTING
-
Modular system with six channels.
-
Suitable for running high volumes.
-
Flexibility to run six individual lot sizes
-
Ability to process frieze or straight yarn on any position
-
Different types of yarn can be processed (PE, PP, etc.)

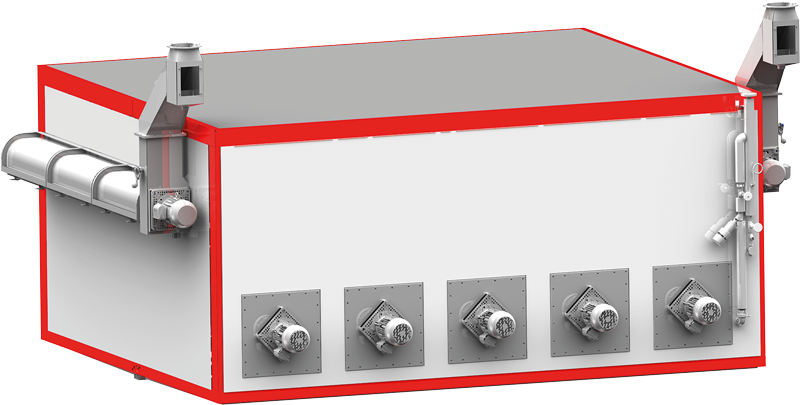

GVA 4.0+
Up to 7 tons / day

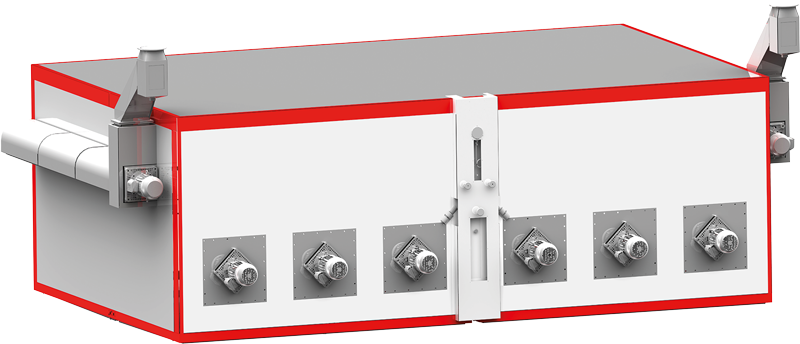

GVA 5.0+
Up to 10 tons / day

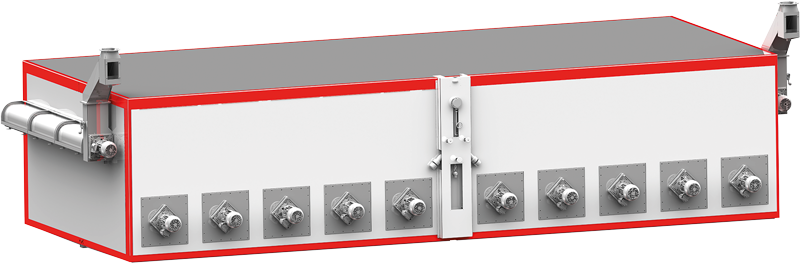

GVA 8.0+
Up to 12 tons / day
-

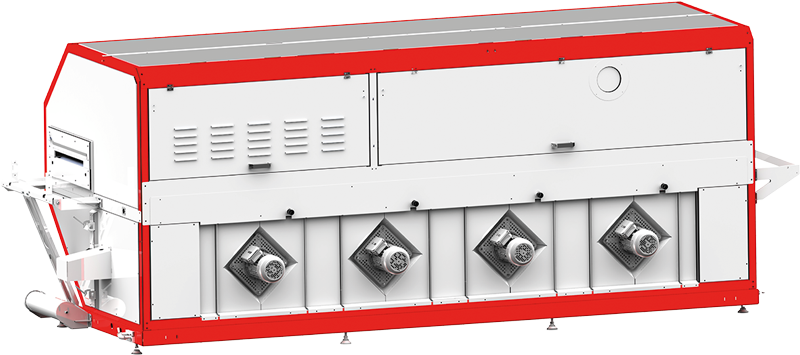

Compact single belt solution.
-
Different kinds of yarn can be processed (PE, PP, etc.)
-
Suitable for medium-sized production.

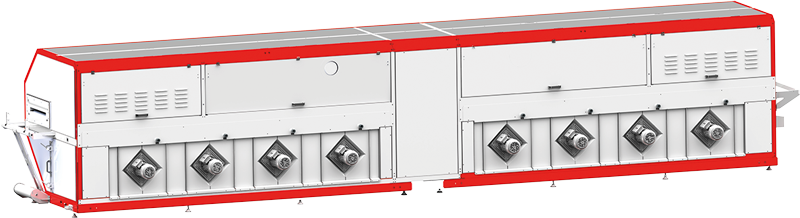

HiPerSet 4.0+
Up to 8 tons / day, max. 72 ends on creel
HiPerSet 8.0+
Up to 12 tons / day, max 84 ends on creel

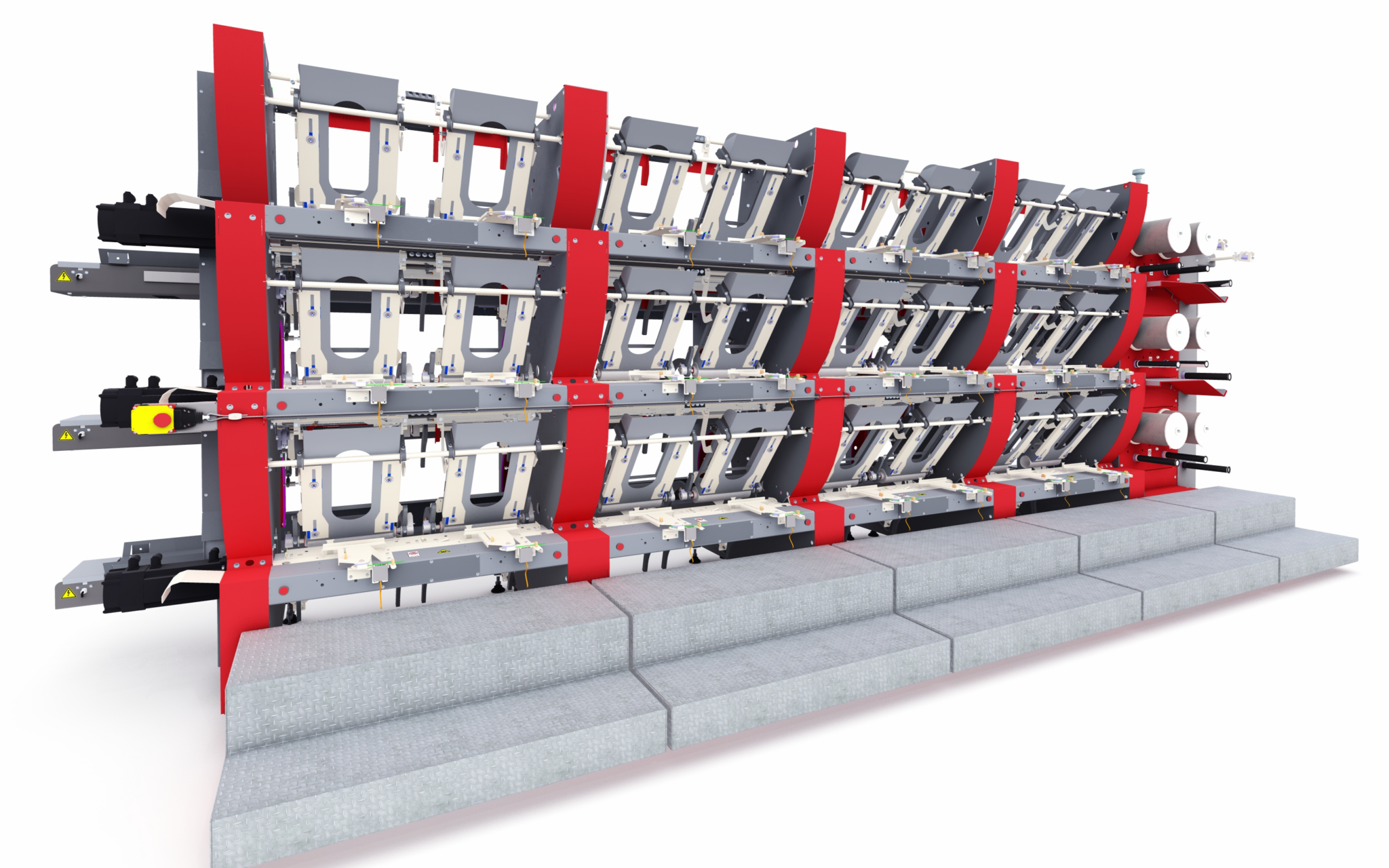

Winder X-Wind Pro 1.0
Following the heatsetting process, the winder winds the yarn optimally back onto the packages and communicates independently with the heatsetting unit in perfect symbiosis – two winders for the GVA, one for the HiPerSet.
The PHS Winder X-Wind Pro 1.0 perfectly matches with non PHS heatsetting machines, too.
-
Optional components enhancing your production process.
-
Flexible extension of your machine configuration.
-
Perfect symbiosis and communication between different machine units.

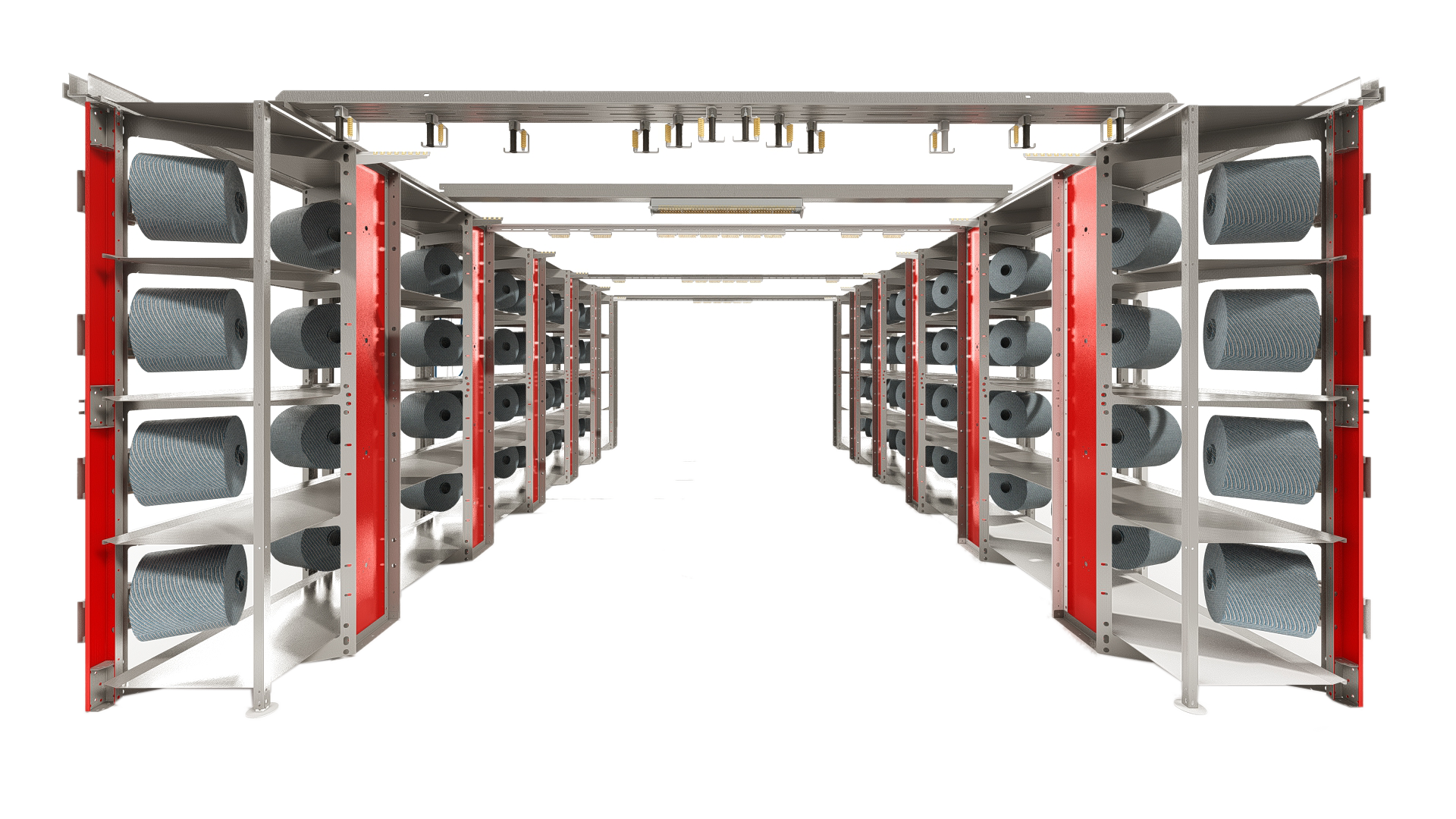

Delta Creel
The symmetrical design of the Delta Creel allows an easy assembly as well as a flexible configuration: a double row yarn path for GVA and a single row yarn path for HiPerSet machines.
The sensor bars at the beginning of the creel recognize the yarn to be heat set and calibrate accordingly thus no manual setting through the opartor is needed.
Its package holders lift packages up to 8 kg. The upper engagement level is 1680 mm which improves ergonomics and handling drastically.

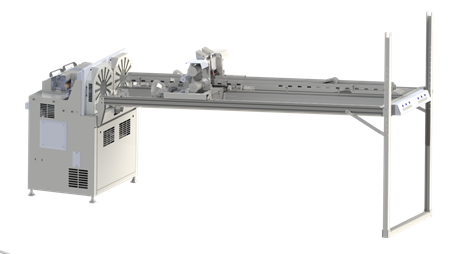

TwinAccu VS II
The TwinAccu provides a higher storage capacity thus accumulation time than the standard single accumulator.
Depending on its configuration, the modular design provides a storage capacity of 3m, 6m or 9m.
Thus, the efficiency increases and the labor costs decrease.
In addition, the TwinAccu’s tenstion generator establishes yarn tension by rolling elements which reduces the potential for lean or streched yarn.

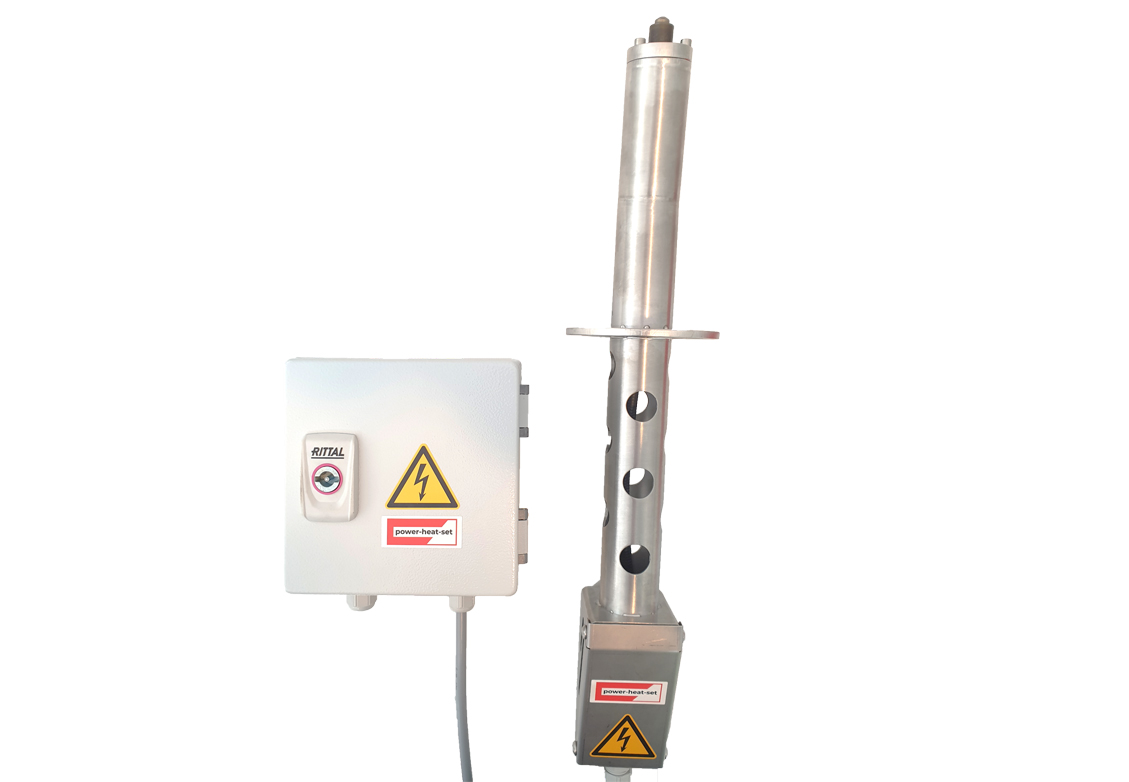

Dew Cap Sensor
Following the heatsetting process, the winderwinds the yarn optimally back onto the packages and communicates independently with the heatsetting unit in perfect symbiosis – two winders for the GVA, one for the HiPerSet.

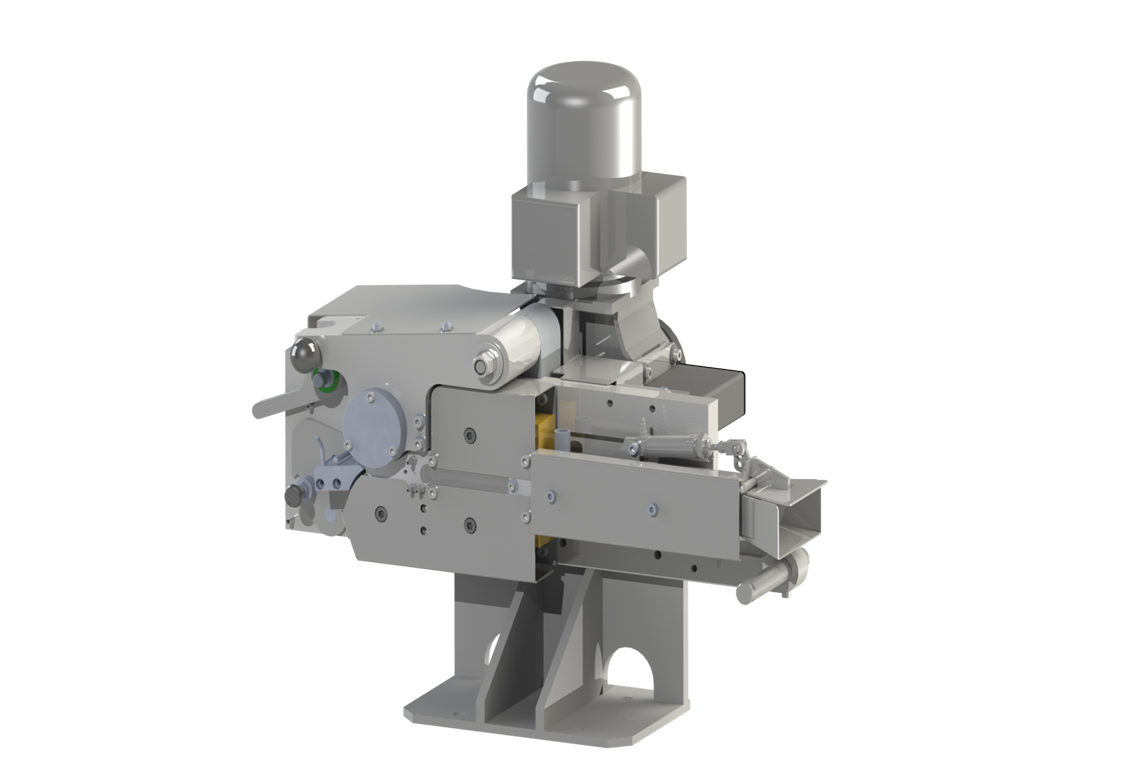

Sealed TRB Steam Channel
The symmetrical design allow an easy assembly as well as a flexible configuration.

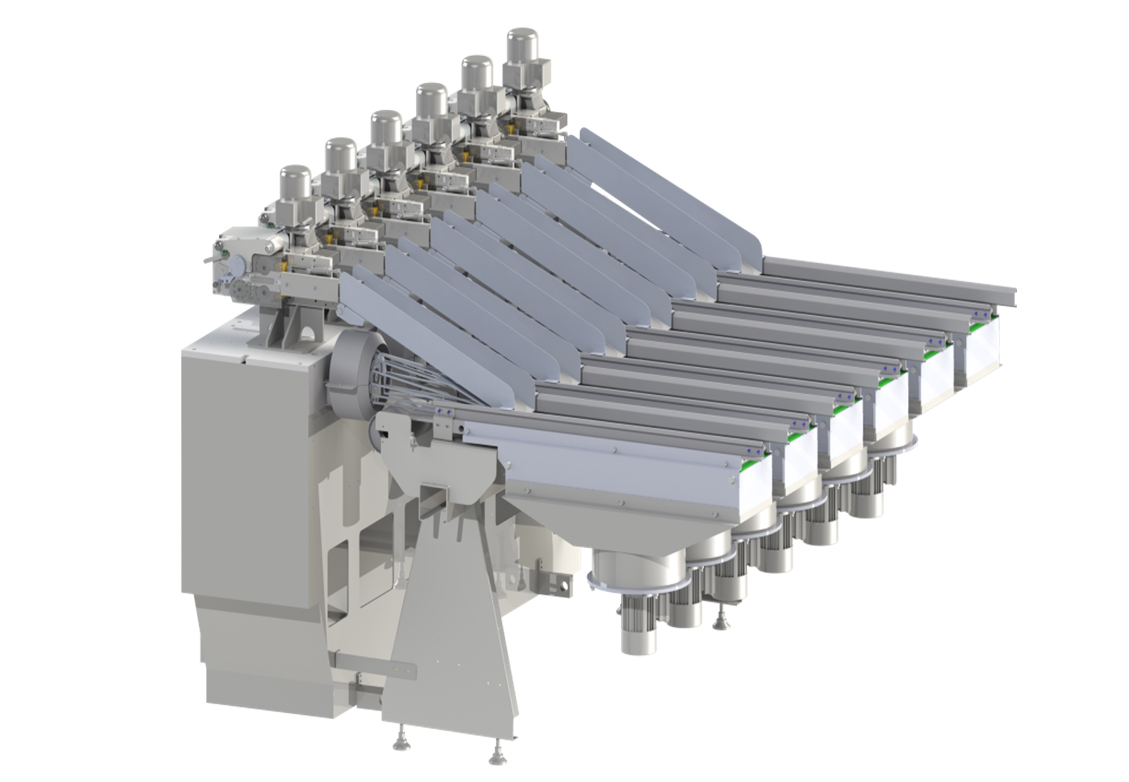

Yarn Suction BEFORE
This fan device is mounted between the equipment base and the climate chamber to improve yarn processability. The suction of the fan draws the yarn onto the belt and avoids “flapping over” of yarn.
In addition, the cooling of the conveyor belt and transport rails is preventing a possible pre-bulking of certain yarns.

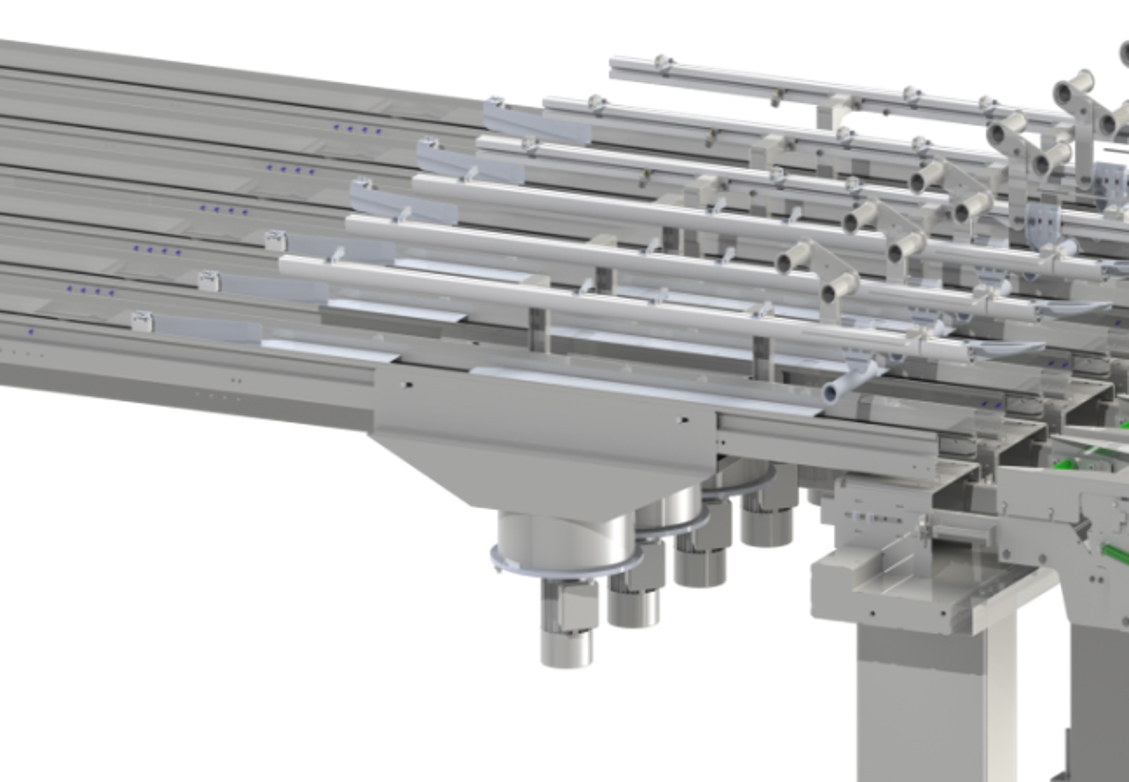

Yarn Suction AFTER
This fan device which is located after the climate chamber at the end of the transport unit replaces the yarn plexiglass depressing device.
The suction of the fan draws the yarn onto the belt before take-off, thus generating a basic tension. This achieves a controlled and more uniform take-off.
STEAMING
Steamatic
The Steamatic is a fully automatic, computer controlled inline yarn steaming unit producing high quality yarn for the textile industry – designed as link between all spinning and winding machines.
