Steamatic
The Inline Steaming Unit
Perfect Link between Spinning and Winding
The unique PHS-steaming technology of the Steamatic produces high quality yarn for the textile industry.

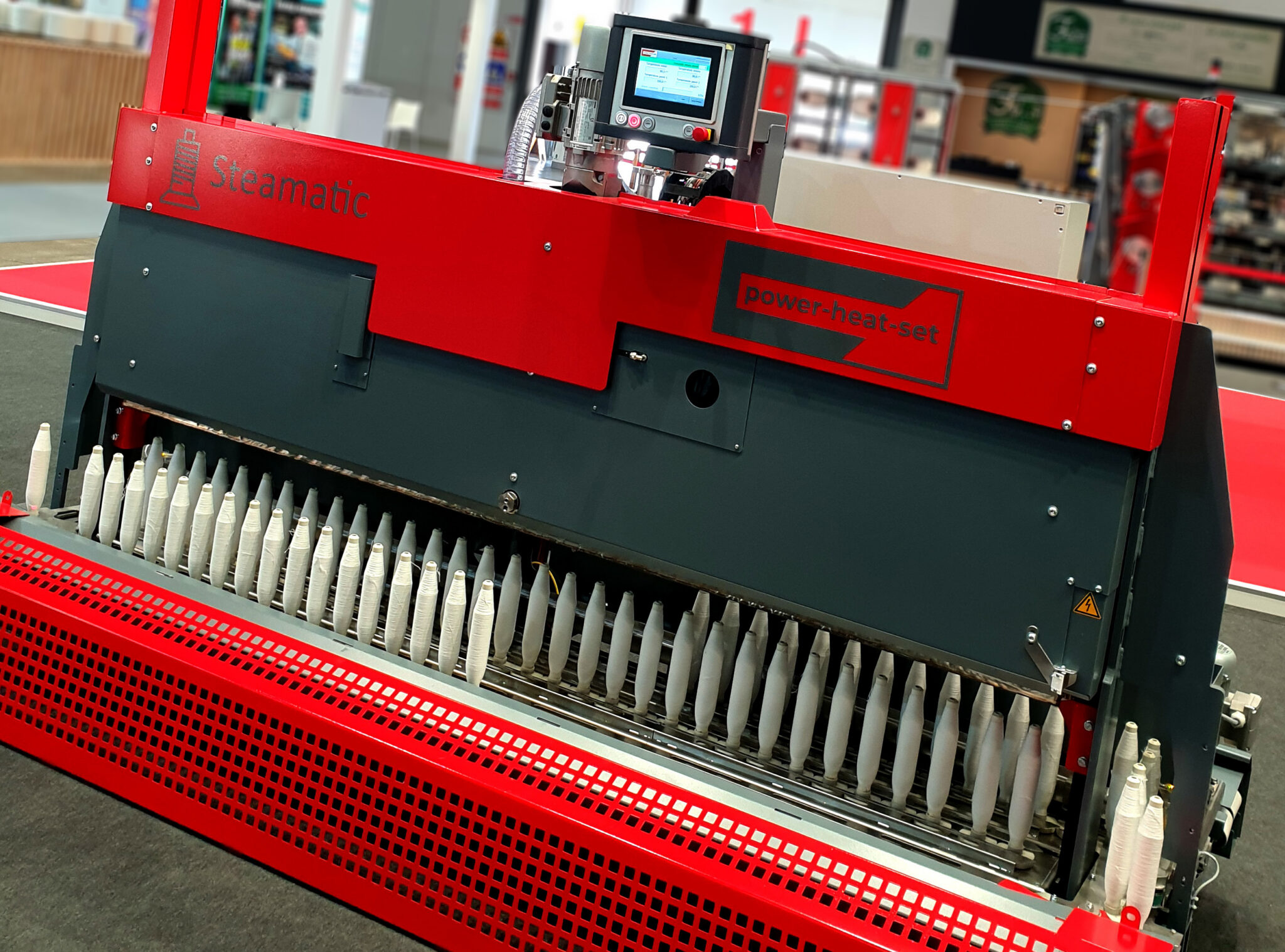

The Steamatic automatically takes over the cops (bobbins) on the peg trays directly from the exit of the spinning machine and transports them under the steam dome. After steaming, the cops are conveyed smoothly to the winding machine.
This is done simultaneously, with one peg tray carrier being loaded, one being processed and one being emptied at the same time.
The Steamatic operates with a synchronized process. Depending on the machine size (E30) and peg tray diameter, between 11 and 32 cops are first steamed under a steam dome and then dried. Both operations are done in a precisely controlled vacuum and with saturated steam temperatures between 70 – 95 °Celsius.
THE STEAMATIC YARN PROCESSING
TECHNICAL DATA
| Compressed Air | Supply | 6 bar |
| Consumption | 1,8m3 / hr. (w/wo cops pre-heating unit) | |
| Supply Connection | Hose 1/2″ | |
| Water | Consumption | 4 l /hr. (w/wo cops pre-heating unit) |
| Waste Water | ca. 4 l / hr. | |
| Supply Connection | Water: Hose 1/2″ | |
| Waste Water: Hose 1/2″ at 0 pressure | ||
| Power | Supply | 400 V – 480 V / 50 Hz – 60 Hz |
| Consumption | 9kWh / hr. without cops pre-heating unit | |
| 11 kWh / hr. with cops pre-heating unit | ||
| Installed | ca. 23 kW without cops pre-heating unit | |
| ca. 28 kW with cops pre-heating unit | ||
| Electricity | 3 PH+PE / 3×35 amps | |
| Throughput | 900 cops / hr. |
ADVANTAGES OF OUR STEAMATIC
Easy installation and start-up
Possibility of inline steaming
Suitable for all spinning and winding machines
Compact installation length, thus shorter connection length
Light weight, thus easier to transport
Easy to use, thus user friendly operations
Available with variable track widths from 680 to 850 mm
Short heat-up phase, fast readiness for operation
No separate boiler required
Vacuum steaming with 100% saturated steam (70°C – 95°C)
Optimal, stable steaming results
Even spread of humidity (level of humidity can be set)
No hot spots, thus no yellowing of the yarn
No mechanical damage to the yarn
No repositioning of cops necessary
No sealing on the trays
Fast vacuum drying going easy on the yarn
Lower investment, low maintenance costs
Low energy and water consumption
Abolition of expensive steam pipes
